1 - Datastore Statuses

When you deploy a Datastore, you will see a Status reported in the CCX Dashboard. This article outlines the statuses and what they mean.

2 - Glossary

3 - Notifications

CCX notifies users by email in case of certain events. Recipients can be configured on the Datastore Settings page or in the Datastore wizard.

4 - Observability

4.1 - Metrics

4.1.1 - Introduction

CCX uses Prometheus and exporters for monitoring. The monitoring data is exposed though the exports from each node. This is a controlled under the Firewall tab in the CCX UI.

4.1.2 - MySQL And MariaDB

• MySQL / MariaDB
  • Handler Stats
    • Statistics for the handler. Shown as:
      • Read Rnd
        • Count of requests to read a row based on a fixed position
      • Read Rnd Next
        • Count of requests to read a subsequent row in a data file
      • Read Next
        • Count of requests to read the next row in key order
      • Read Last
        • Count of requests to read the last key in an index
      • Read Prev
        • Count of requests to read the previous row in key order
      • Read First
        • Count of requests to read a row based on an index key value
      • Read Key
        • Count of requests to read the last key in an index
      • Update
        • Count of requests to update a row
      • Write
        • Count of requests to insert to a table
  • Handler Transaction Stats
  • Database Connections
    • Count of connections to the database. Shown as:
      • Thread Connected
        • Count of clients connected to the database
      • Max Connections
        • Count of max connections allowed to the database
      • Max Used Connections
        • Maximum number of connections in use
      • Aborted Clients
        • Number of connections aborted due to client not closing
      • Aborted Connects
        • Number of failed connection attempts
      • Connections
        • Number of connection attempts
  • Queries
    • Count of queries executed
  • Scan Operations
    • Count of operations for the operations: SELECT, UPDATE and DELETE
  • Table Locking
    • Count of table locks. Shown as:
      • Table locks immediate
        • Count of table locks that could be granted immediately
      • Table locks waited
        • Count of locks that had to be waited due to existing locks or another reason
  • Temporary Tables
    • Count of temporary tables created. Shown as:
      • Temporary tables
        • Count of temporary tables created
      • Temporary tables on Disk
        • Count of temporary tables created on disk rather than in memory
  • Sorting
  • Aborted Connections
    • Count of failed or aborted connections to the database. Shown as:
      • Aborted Clients
        • Number of connections aborted due to client not closing
      • Aborted Connects
        • Number of failed connection attempts
      • Access Denied Errors
        • Count of unsuccessful authentication attempts
    • Memory Utilisation

4.1.3 - PostgreSQL

• PostgreSQL
  • SELECT (fetched)
    • Count of rows fetched by queries to the database
  • SELECT (returned)
    • Count of rows returned by queries to the database
  • INSERT
    • Count of rows inserted to the database
  • UPDATE
    • Count of rows updated in the database
  • DELETE
    • Count of rows deleted in the database
  • Active Sessions
    • Count of currently running queries
  • Idle Sessions
    • Count of connections to the database that are not currently in use
  • Idle Sessions in transaction
    • Count of connections that have begun a transaction but not yet completed while not actively doing work
  • Idle Sessions in transaction (aborted)
    • Count of connections that have begun a transaction but did not complete and were forcefully aborted before they could complete
  • Lock tables
    • Active locks on the database
  • Checkpoints requested and timed
    • Count of checkpoints requested and scheduled
  • Checkpoint sync time
    • Time synchronising checkpoint files to disk
  • Checkpoint write time
    • Time to write checkpoints to disk

4.1.4 - Redis

• Redis
  • Blocked Clients
    • Clients blocked while waiting on a command to execute
  • Memory Used
    • Amount of memory used by Redis (in bytes)
  • Connected Clients
    • Count of clients connected to Redis
  • Redis commands per second
    • Count of commands processed per second
  • Total keys
    • The total count of all keys stored by Redis
  • Replica Lag
    • The lag (in seconds) between the primary and the replica(s)

4.1.5 - System

• System - Hardware level metrics for your Datastore
  • Load Average
    • The overall load on your Datastore within the preset period
  • CPU Usage
    • The breakdown of CPU utilisation for your Datastore, including both System and User processes
  • RAM Usage
    • The amount of RAM (in Gigabytes) used and available within the preset period
  • Network Usage
    • The amount of data (in Kilobits or Megabits per second) received and sent within the preset period
  • Disk Usage
    • The total amount of storage used (in Gigabytes) and what is available within the preset period
  • Disk IO
    • The input and output utilisation for your disk within the preset period
  • Disk IOPS
    • The number of read and write operations within the preset period
  • Disk Throughput
    • The amount of data (in Megabytes per second) that is being read from, or written to, the disk within the preset period

4.1.6 - Valkey

• Valkey
  • Blocked Clients
    • Clients blocked while waiting on a command to execute
  • Memory Used
    • Amount of memory used by Valkey (in bytes)
  • Connected Clients
    • Count of clients connected to Valkey
  • Valkey commands per second
    • Count of commands processed per second
  • Total keys
    • The total count of all keys stored by Valkey
  • Replica Lag
    • The lag (in seconds) between the primary and the replica(s)

5 - Products

5.1 - MariaDb

5.1.1 - Backup

Mariabackup is used to create backups.

CCX backups the Primary server. In multi-primary setups the node with the highest wsrep_local_index is elected.

Backups are streamed directly to S3 staroge.

Mariabackup blocks DDL operations during the backup using the --lock-ddl flag. Any attempt to CREATE, ALTER, DROP, TRUNCATE a table during backup creation will be locked with the status Waiting for backup lock (see SHOW FULL PROCESSLIST). In this case, wait for the backup to finish and, perform the operation later.

Also see the section ‘Schedule’.

Schedule

The backup schedule can be tuned and backups can be paused

5.1.2 - Configuration

max_connections

• 75 connections / GB of RAM.
• Example: 4GB of RAM yields 300 connections.
• This setting cannot be changed as it affects system stability.

InnoDB settings

• These setting cannot be changed as it affects system stability.

innodb_buffer_pool_size

• 50% of RAM if total RAM is > 4GB
• 25% of RAM if total RAM is <= 4GB

innodb_log_file_size

• 1024 MB if innodb_buffer_pool_size >= 8192MB
• 512 MB if innodb_buffer_pool_size < 8192MB

innodb_buffer_pool_instances

• 8

InnoDB options

General options

Storage

Recommended storage size

• We recommend a maximum of 100GB storage per GB of RAM.
• Example: 4GB of RAM yields 400GB of storage.
• The recommendation is not enforced by the CCX platform.

5.1.3 - Importing Data

This procedure describes how to import data to a MariaDB datastore located in CCX.

• The MariaDB Datastore on CCX is denoted as the ‘replica’
• The source of the data is denoted as the ‘source’

note:

If you do not want to setup replication, then you can chose to only apply the sections:

• Create a database dump file
• Apply the dumpfile on the replica

Limitations of MariaDB

MariaDB does not offer as fine grained control over privileges as MySQL. Nor does it have the same level of replication features.

The following properties must be respected in order to comply with the SLA:

• There must be no user management happening on the source, while the data is imported and the replication link is active. This is avoid corruption of the mysql database and possibly other system databases.
• It is recommended to set binlog-ignore-db on the source to ‘mysql, performance_schema, and sys’ during the data import/sync process.

Preparations

Ensure that the source is configured to act as a replication source.

• Binary logging is enabled.
• server_id is set to non 0.

Also, prepare the replica with the databases you wish to replicate from the source to the master:

• Using the CCX UI, go to Databases, and issue a Create Database for each database that will be replicated.

Ensure the CCX Firewall is updated:

• Add the replication source as a Trusted Source in the Firewall section of the CCX UI.

Create a replication user on the source

Create a replication user with sufficient privileges on the source:

CREATE USER 'repluser'@'%' IDENTIFIED BY '<SECRET>';
GRANT REPLICATION SLAVE ON *.* TO 'repluser'@'%';

Prepare the replica to replicate from the source

The replica must be instrucuted to replicate from the source. Make sure to change <SOURCE_IP>, <SOURCE_PORT>, and <SECRET>. Run the following on the source:

CHANGE MASTER TO MASTER_HOST=<SOURCE_IP>, MASTER_PORT=<SOURCE_PORT>, MASTER_USER='repluser', MASTER_PASSWORD='<SECRET>', MASTER_SSL=1;

Create a database dump file of the source

The database dump contains the data that you wish to import into the replica. Only partial dumps are possible. The dump must not contains any mysql or other system databases.

danger: The dump must not contains any mysql or other system databases.

On the source, issue the following command. Change ADMIN, SECRET and DATABASES:

mysqldump -uADMIN -p<SECRET>   --master-data --single-transaction --triggers --routines --events --databases DATABASES > dump.sql`

If your database dump contains SPROCs, triggers or events, then you must replace DEFINER. This may take a while:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the dumpfile on the replica

cat dump.sql | mysql -uccxadmin -p -h<REPLICA_PRIMARY>

Start the replica

On the replica do:

START SLAVE

followed by

SHOW SLAVE STATUS;

And verify that:

             Slave_IO_State: Waiting for source to send event
	     ..
  	     Slave_IO_Running: Yes
             Slave_SQL_Running: Yes

When the migration is ready

STOP SLAVE;
RESET SLAVE ALL;

Troubleshooting

If the replication fails to start then verify:

• All the steps above has been followed.
• Ensure that the replication source is added as a Trusted Source in the Firewall section of the CCX UI.
• Ensure that you have the correct IP/FQDN of the replication source.
• Ensure that users are created correctly and using the correct password.
• Ensure that the dump is fresh.

5.1.4 - Limitations

Every product has limitations. Here is a list MariaDB limitations:

Permissions

The privilege system is not as flexible as in MySQL.

The ‘ccxadmin’ user has the following privileges:

Global / all databases (.):

• CREATE USER, REPLICATION SLAVE, REPLICATION SLAVE ADMIN, SLAVE MONITOR

On databases created from CCX, the admin user can create new users and grant privileges:

• ALL PRIVILEGES WITH GRANT OPTION

This means that users can only create databases from the CCX UI. Once the database has been created from the CCX UI, then the ccxadmin user can create users and grant user privileges on the database using MariaDB CLI.

5.1.5 - Overview

CCX supports two types of MariaDB clustering:

• MariaDB Replication (Primary-replica configuration)x
• MariaDB Cluster (Multi-primary configuration)

For general purpose applications we recommend using MariaDB Replication, and we only recommend to use MariaDB Cluster if you are migrating from an existing application that uses MariaDB Cluster.

If you are new to MariaDB Cluster we stronly recommend to read about the MariaDB Cluster 10.x limitations and MariaDB Cluster Overview to understand if your application can benefit from MariaDB Cluster.

MariaDB Replication uses the standard asynchronous replication based on GTIDs.

Scaling

Storage and nodes can be scaled online.

Nodes (horizonal)

• The maximum number of database nodes in a datastore is 5.
• Multi-primary configuration must contain an odd number of nodes (1, 3 and 5).

Nodes (vertical)

A node cannot be scaled vertically currently. To scale to large instance type, then a larger instance must be added and then remove the unwanted smaller instances.

Storage

• Maximum size depends on the service provider and instance size
• Volume type cannot currently be changed

Further Reading

• Limitations of MariaDB
• Configuration
• Importing Data

5.1.6 - Restore

There are two options to restore a backup:

• Restore a backup on the existing datastore
• Restore a backup on a new datastore

Please note that restoring a backup may be a long running process.

This option allows to restore a backup with point in time recovery. The WAL logs are replayed until the desired PITR.

Warning! Running several restores may change the timelines.

This option allows to restore a backup on a new datastore. This option does not currently support PITR.

5.1.7 - TLS Connection

SSL Modes

CCX currently supports connections to MariaDB in two SSL modes:

1. REQUIRED: This mode requires an SSL connection. If a client attempts to connect without SSL, the server rejects the connection.
2. VERIFY_CA: This mode requires an SSL connection and the server must verify the client’s certificate against the CA certificates that it has.

CA Certificate

The Certificate Authority (CA) certificate required for VERIFY_CA mode can be downloaded from your datastore on CCX using an API call or through the user interface on page https://{your_ccx_domain}/projects/default/data-stores/{datastore_id}/settings. This certificate is used for the VERIFY_CA SSL mode.

Example Commands

Here are example commands for connecting to the MySQL server using the two supported SSL modes:

1. REQUIRED mode:

   mysql --ssl-mode=REQUIRED -u username -p -h hostname


2. VERIFY_CA mode:

   mysql --ssl-mode=VERIFY_CA --ssl-ca=ca.pem -u username -p -h hostname


require_secure_transport

This is a MariaDB setting that governs if connections to the datastore are required to use SSL. You can change this setting in CCX in Settings -> DB Parameters

Examples

ssl-mode=DISABLED and require_secure_transport=OFF

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=disabled
...
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
*SSL:			Not in use*
Current pager:		stdout
...

ssl-mode=PREFERRED and require_secure_transport=OFF

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=preferred
...
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
SSL:			Cipher in use is TLS_AES_256_GCM_SHA384
Current pager:		stdout
...

ssl-mode=DISABLED and require_secure_transport=ON

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=disabled
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 3159 (08004): Connections using insecure transport are prohibited while --require_secure_transport=ON.

ssl-mode=PREFERRED|REQUIRED and require_secure_transport=ON

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=preferred|required
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
SSL:			Cipher in use is TLS_AES_256_GCM_SHA384
Current pager:		stdout
...

tls_version

The tls_version is set to the following by default:

5.2 - MSSQLServer

5.2.1 - Configurations

Important default values

max_connections

• SQL Server has no direct “max connection per GB of RAM” rule. The actual number of user connections allowed depends on the version of SQL Server that you are using, and also the limits of your application(s), and hardware.
• SQL Server allows a maximum of 32,767 user connections.
• User connections is a dynamic (self-configuring) option, SQL Server adjusts the maximum number of user connections automatically as needed, up to the maximum value allowable.
• In most cases, you do not have to change the value for this option. The default is 0, which means that the maximum (32,767) user connections are allowed.
• To determine the maximum number of user connections that your system allows, you can execute sp_configure or query the sys.configuration catalog view.
• For more info: https://learn.microsoft.com/en-us/sql/database-engine/configure-windows/configure-the-user-connections-server-configuration-option?view=sql-server-ver16&viewFallbackFrom=sql-server-ver16.

5.2.2 - Limitations

Every product has limitations. Below is a list of Microsoft SQL Server limitations:

License

• The standard license is applied.

Configurations

• Single node (no High Availability)
• Always On (2 nodes, asynchronous commit mode, High Availability)

Always On-specific limitations

• Refer to the Microsoft standard license for a complete list of limitations.
• Only asynchronous commit mode is currently supported.
• The ccxdb is currently the only supported Always On enabled database.
• Scaling is not supported as the standard license does not permit more than two nodes.

User-created databases (not Always On) are not transferred to the replica

• In the Always On configuration, only the ccxdb is replicated.
• Data loss may occur for other user-created databases, as they are not transferred to the replica during the add node process. Therefore, they may be lost if a failover, automatic repair, or any other life-cycle management event occurs.

5.2.3 - Overview

CCX supports two Microsoft SQLServer 2022 configurations:

• Single-node (No high-availability)
• Always-on, two nodes, async-commit mode (high-availability) in an primary-replica configuration.

The ‘standard’ license is applied.

Scaling

Scaling is not supported in SQLServer as of the standard license.

Storage

• Maximum size depends on the service provider and instance size
• Volume type cannot currently be changed

Further Reading

• Limitations

5.2.4 - User Management

CCX supports creating database users from the web interface.

The database user is created as follows:

CREATE LOGIN username WITH PASSWORD = 'SECRET',  DEFAULT_DATABASE=[master], CHECK_EXPIRATION=OFF,  CHECK_POLICY=OFF
ALTER SERVER ROLE [sysadmin] ADD MEMBER [username]

5.3 - MySQL

5.3.1 - Backup

Percona Xtrabackup is used to create backups.

CCX backups the Primary server. In multi-primary setups the node with the highest wsrep_local_index is elected.

Backups are streamed directly to S3 staroge.

Percona Xtrabackup blocks DDL operations during the backup using the --lock-ddl flag. Any attempt to CREATE, ALTER, DROP, TRUNCATE a table during backup creation will be locked with the status Waiting for backup lock (see SHOW FULL PROCESSLIST). In this case, wait for the backup to finish and, perform the operation later.

Also see the section ‘Schedule’.

Schedule

The backup schedule can be tuned and backups can be paused.

5.3.2 - Configuration

max_connections

• 75 connections / GB of RAM.
• Example: 4GB of RAM yields 300 connections.
• This setting cannot be changed as it affects system stability.

InnoDB settings

• These setting cannot be changed as it affects system stability.

innodb_buffer_pool_size

• 50% of RAM if total RAM is > 4GB
• 25% of RAM if total RAM is <= 4GB

innodb_log_file_size

• 1024 MB if innodb_buffer_pool_size >= 8192MB
• 512 MB if innodb_buffer_pool_size < 8192MB

innodb_buffer_pool_instances

• 8

InnoDB options

General options

Storage

Recommended storage size

• We recommend a maximum of 100GB storage per GB of RAM.
• Example: 4GB of RAM yields 400GB of storage.
• The recommendation is not enforced by the CCX platform.

5.3.3 - Importing Data

This procedure describes how to import data to a MySQL datastore located in CCX.

• The MySQL Datastore on CCX is denoted as the ‘replica’
• The source of the data is denoted as the ‘source’

note:

If you dont want to setup replication, then you can chose to only apply the sections:

• Create a database dump file
• Apply the dumpfile on the replica

Preparations

Ensure that the source is configured to act as a replication source:

• Binary logging is enabled.
• server_id is set to non 0.

Ensure the CCX Firewall is updated:

• Add the replication source as a Trusted Source in the Firewall section of the CCX UI.

Create a replication user on the source

Create a replication user with sufficient privileges on the source:

CREATE USER 'repluser'@'%' IDENTIFIED BY '<SECRET>';
GRANT REPLICATION SLAVE ON *.* TO  'repluser'@'%';

Prepare the replica to replicate from the source

The replica must be instructed to replicate from the source:

Make sure to change <SOURCE_IP>, <SOURCE_PORT>, and <SECRET>.

CHANGE REPLICATION SOURCE TO SOURCE_HOST=<SOURCE_IP>, SOURCE_PORT=<SOURCE_PORT>, SOURCE_USER='repluser', SOURCE_PASSWORD='<SECRET>', SOURCE_SSL=1;

Create a replication filter on the replica

The replica filter prevents corruption of the datastore.

If the datastore’s system tables are corrupted using replication then the SLA is void and the datastore must be recreated.

CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=(mysql,sys, performance_schema);

Create a database dump file

The database dump contains the data that you wish to import into the replica. Only partial dumps are possible. The dump must not contains any mysql or other system databases.

On the source, issue the following command. Change USER, SECRET and DATABASES:

mysqldump --set-gtid-purged=OFF -uUSER -pSECRET   --master-data --single-transaction --triggers --routines --events  --databases DATABASES > dump.sql

Important! If your database dump contains SPROCs, triggers or events, then you must replace DEFINER:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the dumpfile on the replica

cat dump.sql | mysql -uccxadmin -p -h<REPLICA_PRIMARY>

Start the replica

On the replica do:

START REPLICA;

followed by

SHOW REPLICA STATUS;

And verify that:

             Replica_IO_State: Waiting for source to send event
	     ..
  	     Replica_IO_Running: Yes
             Replica_SQL_Running: Yes

When the migration is ready

STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=();

Troubleshooting

If the replication fails to start then verify:

• All the steps above has been followed.
• Ensure that the replication source is added as a Trusted Source in the Firewall section of the CCX UI.
• Ensure that you have the correct IP/FQDN of the replication source.
• Ensure that users are created correctly and using the correct password.
• Ensure that the dump is fresh.

5.3.4 - Importing Data From AWS RDS

This procedure describes how to import data from Amazon RDS to a MySQL datastore located in CCX.

• The MySQL Datastore on CCX is referred to as the ‘CCX Primary’
• The RDS Source of the data is referred to as the ‘RDS Writer’

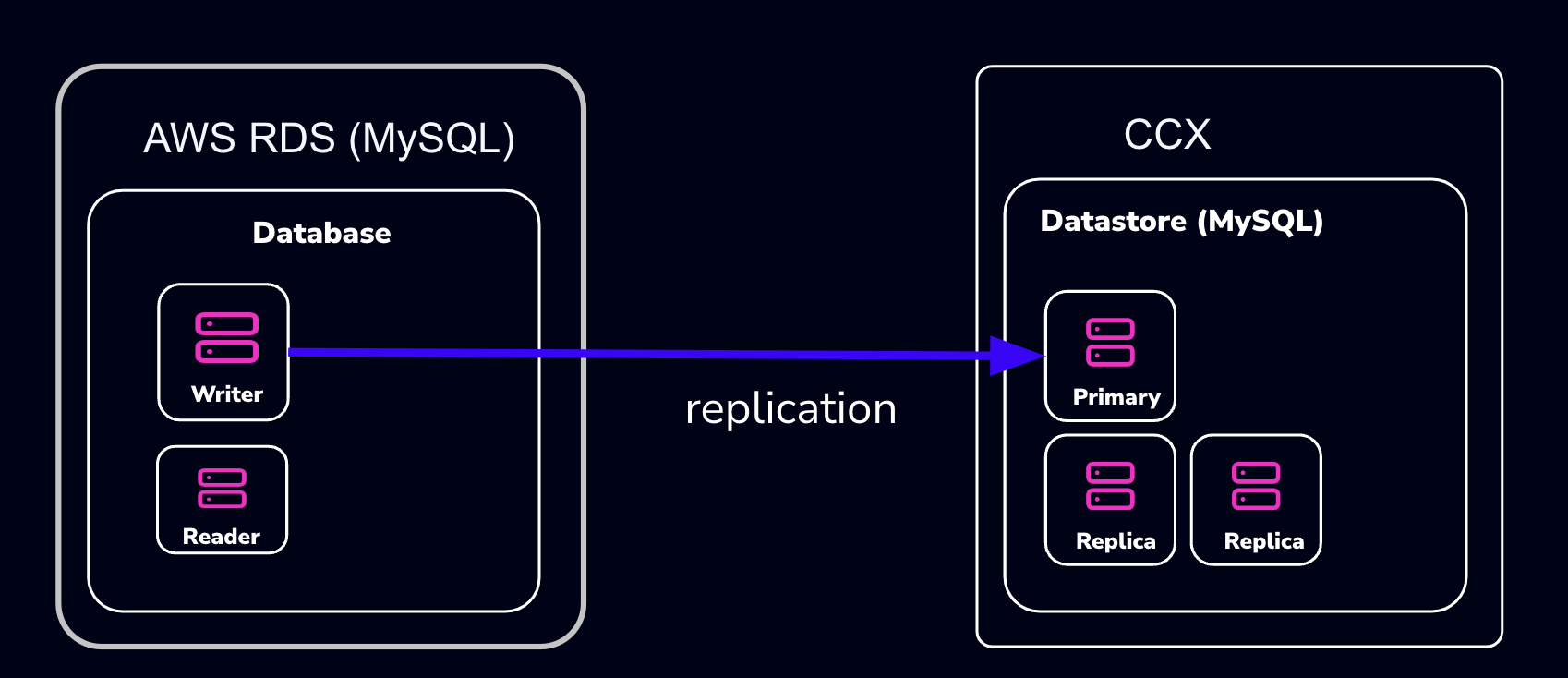

Schematically, this is what we will set up:

warning:

AWS RDS makes it intentionally difficult to migrate away from. Many procedures on the internet, as well as AWS’s own procedures, will not work.

The migration we suggest here (and is the only one we know works) requires that the RDS Writer instance be blocked for writes until a mysqldump has been completed. However, AWS RDS blocks operations such as FLUSH TABLES WITH READ LOCK: mysqldump: Couldn't execute 'FLUSH TABLES WITH READ LOCK': Access denied for user 'admin'@'%' (using password: YES) (1045) Therefore, the actual applications must be blocked from writing.

Also, some procedures on the internet suggest creating a read-replica. This will not work either, as the AWS RDS Read-replica is crippled and lacks GTID support.

note:

If you don’t want to set up replication, you can choose to only apply the following sections:

• Create a database dump file of the RDS Writer
• Apply the dump file on the CCX replica

Also, practice this a few times before you actually do the migration.

Preparations

• Create a datastore on CCX. Note that you can also replicate from MySQL 8.0 to MySQL 8.4.

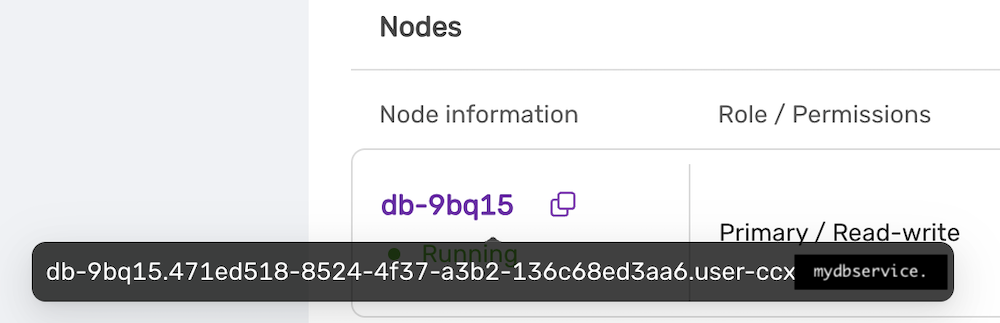

• Get the endpoint of the CCX Primary (under the Nodes section). The endpoint in our case is db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net.
• Get the endpoint of the RDS Writer. In this example, the endpoint is database-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com
• Update the Security group on AWS RDS to allow the IP address of the CCX Primary to connect. To get the IP address of the CCX Primary, run:

  dig db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net


• Ensure you can connect a MySQL client to both the CCX Primary and the RDS Writer.

Create a Replication User On the RDS Writer Instance

Create a replication user with sufficient privileges on the RDS Writer. In the steps below, we will use repl and replpassword as the credentials when setting up the replica on CCX.

CREATE USER 'repl'@'%' IDENTIFIED BY 'replpassword';
GRANT REPLICATION SLAVE ON *.* TO  'repluser'@'%'; #mysql 8.0
GRANT REPLICATION REPLICATION_SLAVE_ADMIN ON *.* TO  'repluser'@'%';

Block Writes to the RDS Writer Instance

This is the most challenging part. You must ensure your applications cannot write to the Writer instance. Unfortunately, AWS RDS blocks operations like FLUSH TABLES WITH READ LOCK.

Create a Consistent Dump

Assuming that writes are now blocked on the RDS Writer Instance, you must get the binary log file and the position of the RDS Writer instance.

Get the Replication Start Position

The start position (binary log file name and position) is used to tell the replica where to start replicating data from.

MySQL 8.0: SHOW MASTER STATUS\G
MySQL 8.4 and later: SHOW BINARY LOG STATUS\G

It will output:

 *************************** 1. row ***************************
             File: mysql-bin-changelog.000901
         Position: 584
     Binlog_Do_DB:
 Binlog_Ignore_DB:
Executed_Gtid_Set: 796aacf3-24ed-11f0-949d-0605a27ab4b9:1-876
1 row in set (0.02 sec)

Record the File: mysql-bin-changelog.000901 and the Position: 584 as they will be used to set up replication.

Create the mysqldump

Be sure to specify the database you wish to replicate. You must omit any system databases. In this example, we will dump the databases prod and crm.

mysqldump -uadmin -p -hdatabase-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com --databases prod crm --triggers --routines --events --set-gtid_purged=OFF --single-transaction  > dump.sql

Wait for it to complete.

Unblock Writes to the RDS Writer Instance

At this stage, it is safe to enable application writes again.

Load the Dump On the Replica

Create a Replication Filter On the Replica

The replica filter prevents corruption of the datastore, and we are not interested in changes logged by AWS RDS to mysql.rds* tables anyway. Also add other databases that you do not wish to replicate to the filter.

note:

If the CCX datastore’s system tables are corrupted using replication, then the datastore must be recreated.

CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=(mysql, sys, performance_schema);

Important! If your database dump contains stored procedures, triggers, or events, then you must replace DEFINER:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the Dump File On the CCX Primary:

cat dump.sql | mysql -uccxadmin -p -hCCX_PRIMARY

Connect the CCX Primary to the RDS Writer Instance

The CCX Primary must be instructed to replicate from the RDS Writer. We have the binlog file and position from the earlier step:

• mysql-bin-changelog.000901
• 584

CHANGE REPLICATION SOURCE TO SOURCE_HOST='database-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com', SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='replpassword', SOURCE_SSL=1, SOURCE_LOG_FILE='mysql-bin-changelog.000901', SOURCE_LOG_POS=584;

Start the Replica

On the replica, run:

START REPLICA;

followed by:

SHOW REPLICA STATUS;

And verify that:

             Replica_IO_State: Waiting for source to send event
	            ...
  	       Replica_IO_Running: Yes
          Replica_SQL_Running: Yes

When the Migration is Ready

At some point, you will need to point your applications to the new datastore. Ensure:

• Prevent writes to the RDS Writer
• Make sure the CCX Primary has applied all data (use SHOW REPLICA STATUS)
• Connect the applications to the new datastore

STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=();

Troubleshooting

If the replication fails to start, verify:

• All the steps above have been followed
• Ensure that the IP address of the CCX Primary is added to the security group used by the RDS Writer instance
• Ensure that you have the correct IP/FQDN of the RDS Writer instance
• Ensure that users are created correctly and using the correct password
• Ensure that the dump is fresh

5.3.5 - Importing Data From GCP

This procedure describes how to import data from Google Cloud SQL to a MySQL datastore located in CCX.

• The MySQL Datastore on CCX is referred to as the ‘CCX Primary’
• The GCP Source of the data is referred to as the ‘GCP Primary’

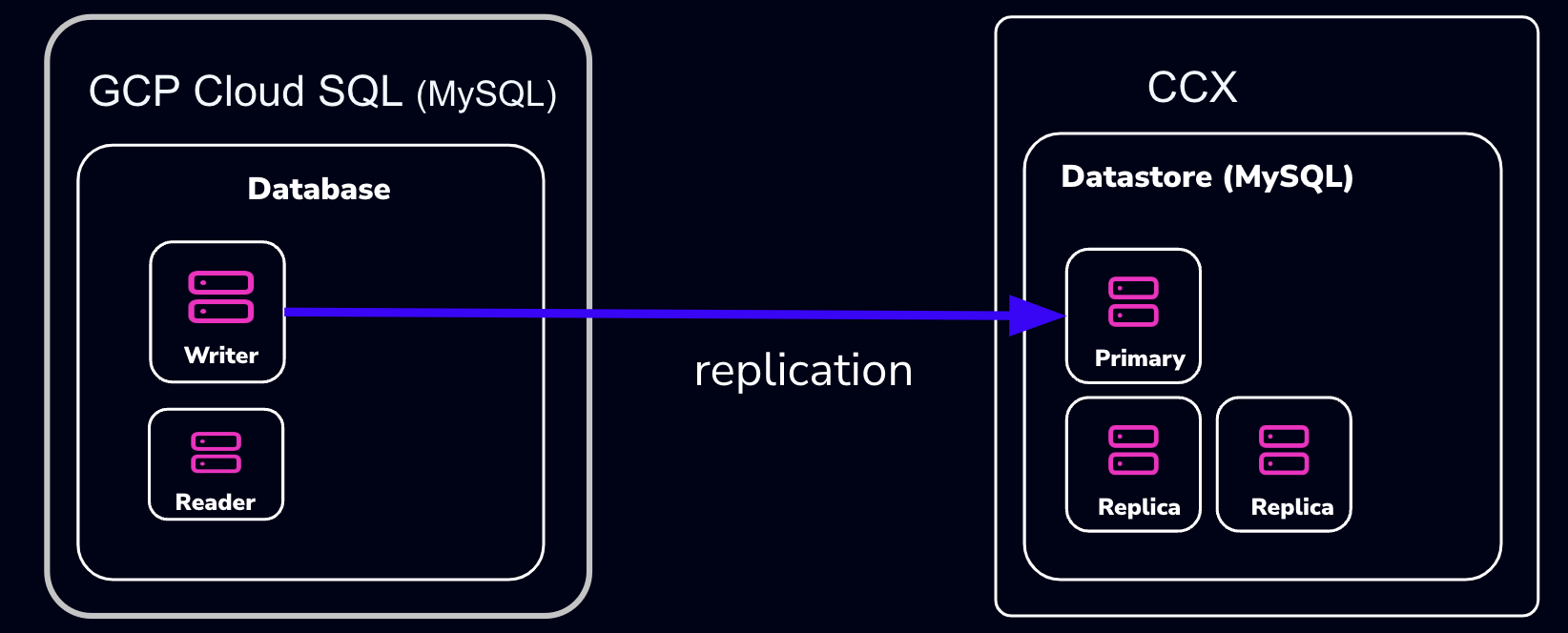

Schematically, this is what we will set up:

note:

If you don’t want to set up replication, you can choose to only apply the following sections:

• Create a database dump file of the GCP Primary
• Apply the dump file on the CCX replica

Also, practice this a few times before you actually do the migration.

Preparations

• Create a datastore on CCX. Note that you can also replicate from MySQL 8.0 to MySQL 8.4.
• Get the endpoint of the CCX Primary (under the Nodes section). The endpoint in our case is db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net.
• The GCP Primary must have a Public IP.
• Get the endpoint of the GCP Primary. In this example, the endpoint is 34.51.xxx.xxx
• Update the Security group on GCP to allow the IP address of the CCX Primary to connect. To get the IP address of the CCX Primary, run:

  dig db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net


• Ensure you can connect a MySQL client to both the CCX Primary and the GCP Primary.

Create a Replication User on the GCP Primary Instance

Create a replication user with sufficient privileges on the GCP Primary. In the steps below, we will use repl and replpassword as the credentials when setting up the replica on CCX.

CREATE USER 'repl'@'%' IDENTIFIED BY 'replpassword';
GRANT REPLICATION SLAVE ON *.* TO  'repluser'@'%'; #mysql 8.0
GRANT REPLICATION REPLICATION_SLAVE_ADMIN ON *.* TO  'repluser'@'%';

Create the mysqldump

Be sure to specify the database you wish to replicate. You must omit any system databases. In this example, we will dump the databases prod and crm.

mysqldump -uroot -p -h34.51.xxx.xxx --databases prod crm --triggers --routines --events --set-gtid_purged=OFF --source-data --single-transaction > dump.sql

Wait for it to complete.

Load the Dump on the Replica

Create a Replication Filter on the Replica

The replica filter prevents corruption of the datastore, and we are not interested in changes logged by GCP to mysql.rds* tables anyway. Also add other databases that you do not wish to replicate to the filter.

note:

If the CCX datastore’s system tables are corrupted using replication, then the datastore must be recreated.

CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=(mysql, sys, performance_schema);

Important! If your database dump contains stored procedures, triggers, or events, then you must replace DEFINER:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the Dump File on the CCX Primary:

cat dump.sql | mysql -uccxadmin -p -hCCX_PRIMARY

Connect the CCX Primary to the GCP Primary

Issue the following commands on the CCX Primary:

CHANGE REPLICATION SOURCE TO SOURCE_HOST='34.51.xxx.xxx', SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='replpassword', SOURCE_SSL=1;

Start the Replica

On the CCX Primary, run:

START REPLICA;

followed by:

SHOW REPLICA STATUS\G

And verify that:

             Replica_IO_State: Waiting for source to send event
	     ..
  	     Replica_IO_Running: Yes
             Replica_SQL_Running: Yes

When the Migration is Ready

At some point, you will need to point your applications to the new datastore. Ensure:

• There are no application writes to the GCP Primary
• The CCX Primary has applied all data (use SHOW REPLICA STATUS \G, check the Seconds_Behind_Master)
• Connect the applications to the new datastore

Then you can clean up the replication link on the CCX Primary:

STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=();

Troubleshooting

If the replication fails to start, verify:

• All the steps above have been followed
• Ensure that the IP address of the CCX Primary is added to the security group used by the GCP Primary instance
• Ensure that you have the correct IP/FQDN of the GCP Primary instance
• Ensure that users are created correctly and using the correct password
• Ensure that the dump is fresh

5.3.6 - Limitations

Every product has limitations. Here is a list MySQL limitations:

Permissions

The privilege system in MySQL is offers more capabilties than MariaDB. Hence, the ‘ccxadmin’ user has more privileges in MySQL than in MariaDB.

The ‘ccxadmin’ user has the following privileges:

• Global / all databases (*.*):
  • SELECT, INSERT, UPDATE, DELETE, CREATE, DROP, RELOAD, PROCESS, REFERENCES, INDEX, ALTER, SHOW DATABASES, CREATE TEMPORARY TABLES, LOCK TABLES, EXECUTE, REPLICATION SLAVE, REPLICATION CLIENT, CREATE VIEW, REPLICATION_SLAVE_ADMIN, SHOW VIEW, CREATE ROUTINE, ALTER ROUTINE, CREATE USER, EVENT, TRIGGER, GRANT

This means that the ‘ccxadmin’ may assign privileges to users on all databases.

Restrictions:

‘ccxadmin’ is not allowed to modify the following databases

• mysql.*
• sys.*

For those database, the following privileges have been revoked from ‘ccxadmin’:

• INSERT, UPDATE, DELETE, CREATE, DROP, REFERENCES, INDEX, ALTER, CREATE TEMPORARY TABLES, LOCK TABLES, EXECUTE, CREATE VIEW, SHOW VIEW, CREATE ROUTINE, ALTER ROUTINE, EVENT, TRIGGER

5.3.7 - Overview

CCX supports two types of MySQL clustering:

• MySQL Replication (Primary-replica configuration)
• Percona XtraDb Cluster (Multi-primary configuration)

For general purpose applications we recommend using MySQL Replication, and we only recommend to use Percona XtraDb Cluster if you are migrating from an existing application that uses Percona XtraDb Cluster.

If you are new to Percona XtraDb Cluster we stronly recommend to read about the Percona XtraDb Cluster limitations and Percona XtraDb Cluster Overview to understand if your application can benefit from Percona XtraDb Cluster.

MySQL Replication uses the standard asynchronous replication based on GTIDs.

Scaling

Storage and nodes can be scaled online.

Nodes (horizonal)

• The maximum number of database nodes in a datastore is 5.
• Multi-primary configuration must contain an odd number of nodes (1, 3 and 5).

Nodes (vertical)

A node cannot be scaled vertically currently. To scale to large instance type, then a larger instance must be added and then remove the unwanted smaller instances.

Storage

• Maximum size depends on the service provider and instance size
• Volume type cannot currently be changed

Further Reading

• Limitations
• Configuration
• Importing Data

5.3.8 - Restore

There are two options to restore a backup:

• Restore a backup on the existing datastore
• Restore a backup on a new datastore

Please note that restoring a backup may be a long running process.

This option allows to restore a backup with point in time recovery. The WAL logs are replayed until the desired PITR. Warning! Running several restores may change the timelines.

This option allows to restore a backup on a new datastore. This option does not currently support PITR.

5.3.9 - TLS Connection

SSL Modes

CCX currently supports connections to MySQL in two SSL modes:

1. REQUIRED: This mode requires an SSL connection. If a client attempts to connect without SSL, the server rejects the connection.

2. VERIFY_CA: This mode requires an SSL connection and the server must verify the client’s certificate against the CA certificates that it has.

CA Certificate

The Certificate Authority (CA) certificate required for VERIFY_CA mode can be downloaded from your datastore on CCX using an API call or through the user interface on page https://{your_ccx_domain}/projects/default/data-stores/{datastore_id}/settings. This certificate is used for the VERIFY_CA SSL mode.

Example Commands

Here are example commands for connecting to the MySQL server using the two supported SSL modes:

1. REQUIRED mode:

   mysql --ssl-mode=REQUIRED -u username -p -h hostname


2. VERIFY_CA mode:

   mysql --ssl-mode=VERIFY_CA --ssl-ca=ca.pem -u username -p -h hostname


require_secure_transport

This is a MySQL setting that governs if connections to the datastore are required to use SSL. You can change this setting in CCX in Settings -> DB Parameters:

Examples

ssl-mode=DISABLED and require_secure_transport=OFF

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=disabled
...
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
*SSL:			Not in use*
Current pager:		stdout
...

ssl-mode=PREFERRED and require_secure_transport=OFF

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=preferred
...
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
SSL:			Cipher in use is TLS_AES_256_GCM_SHA384
Current pager:		stdout
...

ssl-mode=DISABLED and require_secure_transport=ON

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=disabled
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 3159 (08004): Connections using insecure transport are prohibited while --require_secure_transport=ON.

ssl-mode=PREFERRED|REQUIRED and require_secure_transport=ON

mysql -uccxadmin -p -h...  -P3306 ccxdb --ssl-mode=preferred|required
mysql> \s
--------------
...
Connection id:		52
Current database:	ccxdb
Current user:		ccxadmin@...
SSL:			Cipher in use is TLS_AES_256_GCM_SHA384
Current pager:		stdout
...

tls_version

The tls_version is set to the following by default:

5.3.10 - User Management

CCX supports creating database users from the web interface. The database user has the following privileges:

• Global / all databases (*.*):
  • SELECT, INSERT, UPDATE, DELETE, CREATE, DROP, RELOAD, PROCESS, REFERENCES, INDEX, ALTER, SHOW DATABASES, CREATE TEMPORARY TABLES, LOCK TABLES, EXECUTE, REPLICATION SLAVE, REPLICATION CLIENT, CREATE VIEW, REPLICATION_SLAVE_ADMIN, SHOW VIEW, CREATE ROUTINE, ALTER ROUTINE, CREATE USER, EVENT, TRIGGER, GRANT

This means that the database user may assign privileges to users on all databases.

Restrictions:

The database user is not allowed to modify the following databases

• mysql.*
• sys.*

For those database, the following privileges have been revoked from ‘ccxadmin’:

• INSERT, UPDATE, DELETE, CREATE, DROP, REFERENCES, INDEX, ALTER, CREATE TEMPORARY TABLES, LOCK TABLES, EXECUTE, CREATE VIEW, SHOW VIEW, CREATE ROUTINE, ALTER ROUTINE, EVENT, TRIGGER

5.4 - PostgreSQL

5.4.1 - Backup

Pg_basebackup is used to create backup. Also see the section ‘Schedule’.

CCX backups the Secondary server.

Backups are streamed directly to S3 staroge.

Schedule

The backup schedule can be tuned and backups can be paused

5.4.2 - Configuration

These settings cannot be changed as it affects system stability

Important default values

Max connections

The maximum number of connections depends on the instance size. The number of connections can be scaled by adding a new database secondary allowing of a larger instance size. The new replica can then be promoted to the new primary. See Promoting a replica for more information.

Archive mode

All nodes are configured with archive_mode=always.

Auto-vacuum

Auto-vacuum settings are set to default. Please read more about automatic vaccuming here

5.4.3 - Extensions

Supported extentions

Creating an extension

Connect to PostgreSQL using an admin account (e.g ccxadmin).

CREATE EXTENSION vector;
CREATE EXTENSION

See Postgres documentation for more information.

5.4.4 - Importing Data

This procedure describes how to import data to a PostgreSQL datastore located in CCX.

• The PostgreSQL Datastore on CCX is denoted as the ‘replica’
• The source of the data is denoted as the ‘source’

Create a database dump file

Dump the database schema from the <DATABASE> you wish to replicate:

pg_dump --no-owner -d<DATABASE> > /tmp/DATABASE.sql

Apply the dumpfile on the replica

postgres=# CREATE DATABASE <DATABASE>;

Copy the DSN from Nodes, Connection Information in the CCX UI. Change ‘ccxdb’ to <DATABASE>:

psql postgres://ccxadmin:.../<DATABASE> <  /tmp/DATABASE.sql

5.4.5 - Limitations

Every product has limitations. Here is a list PostgreSQL limitations:

Permissions

PostgreSQL users are created with the following permissions:

• NOSUPERUSER, CREATEROLE, LOGIN, CREATEDB

5.4.6 - Restore

Postgres configures archive_command and archive_mode=always. Morever, during the restore the restore_command is set.

There are two options to restore a backup:

• Restore a backup on the existing datastore
• Restore a backup on a new datastore

Please note that restoring a backup may be a long running process.

This option allows to restore a backup with point in time recovery. The WAL logs are replayed until the desired PITR. Warning! Running several restores may change the timelines.

This option allows to restore a backup on a new datastore. This option does not currently support PITR.

5.5 - Redis

5.5.1 - Backup

A backup of Redis consists of both RDB and AOF.

Schedule

The backup schedule can be tuned and backups can be paused

5.5.2 - Configuration

Volume size

Since Redis is an in-memory database, the storage size is fixed and twice the amount of the RAM. Thus, it is not possible to:

• specify the storage size in the deployment wizard.
• scale the storage.

Persistance

Redis is configured to use both AOF and RDB for persistance. The following configuration parameters are set:

• appendonly yes
• default values for AOF
• default values for RDB

5.5.3 - User Management

CCX simplifies Redis user management by providing a clear and intuitive user interface for managing privileges and accounts. Below are detailed instructions and explanations for managing Redis users within the CCX environment.

Viewing Existing Users

To view existing Redis users:

1. Navigate to the Users section in your CCX Redis cluster.
2. Here you’ll see a list of existing user accounts along with their associated privileges.

User Information Displayed:

• Account: Username of the Redis user.
• Privileges: Specific privileges granted or filtered out.
• Actions: Options to manage (modify/delete) the user.

Note: By default, the -@admin and -@dangerous privileges are filtered out for security purposes.

Creating a New Redis Admin User

To create a new Redis admin user:

1. Click on the Create Admin user button.

2. Fill in the required fields:

   • Username: Enter the desired username.
   • Password: Enter a secure password for the user.
   • Categories: Enter the privilege categories. By default, using +@all will grant all privileges except those explicitly filtered (like -@admin and -@dangerous).

3. Optionally, you can define more granular restrictions:

   • Commands: Enter commands to explicitly allow (+) or disallow (-). For example:

     • Allow command: +get
     • Disallow command: -get

   • Channels: Specify Redis Pub/Sub channels. You can allow (&channel) or disallow (-&channel).

   • Keys: Specify key access patterns. Use the syntax ~key to allow or ~-key to disallow access to specific keys or patterns.

4. After completing the form, click on the Create button to save the new user.

Default Privilege Filtering

CCX ensures the security of your Redis instance by automatically filtering potentially harmful privileges:

• -@admin: Restricts administrative commands.
• -@dangerous: Restricts commands that could compromise the cluster’s stability.

These privileges cannot be granted through CCX’s standard user interface for security reasons.

Firewall and Access Control

User accounts in CCX Redis clusters are protected by built-in firewall rules:

• Accounts are only allowed to connect from trusted sources defined in the firewall settings.

Ensure your firewall rules are properly configured to maintain secure access control to your Redis users.

5.6 - Valkey

5.6.1 - Backup

A backup of Valkey consists of both RDB and AOF.

Schedule

The backup schedule can be tuned and backups can be paused

5.6.2 - Configuration

Volume size

Since Valkey is an in-memory database, the storage size is fixed and twice the amount of the RAM. Thus, it is not possible to:

• specify the storage size in the deployment wizard.
• scale the storage.

Persistance

Redis is configured to use both AOF and RDB for persistance. The following configuration parameters are set:

• appendonly yes
• default values for AOF
• default values for RDB

5.6.3 - User Management

CCX simplifies Valkey user management by providing a clear and intuitive user interface for managing privileges and accounts. Below are detailed instructions and explanations for managing Valkey users within the CCX environment.

Viewing Existing Users

To view existing Valkey users:

1. Navigate to the Users section in your CCX Valkey cluster.
2. Here you’ll see a list of existing user accounts along with their associated privileges.

User Information Displayed:

• Account: Username of the Valkey user.
• Privileges: Specific privileges granted or filtered out.
• Actions: Options to manage (modify/delete) the user.

Note: By default, the -@admin and -@dangerous privileges are filtered out for security purposes.

Creating a New Valkey Admin User

To create a new Valkey admin user:

1. Click on the Create Admin user button.

2. Fill in the required fields:

   • Username: Enter the desired username.
   • Password: Enter a secure password for the user.
   • Categories: Enter the privilege categories. By default, using +@all will grant all privileges except those explicitly filtered (like -@admin and -@dangerous).

3. Optionally, you can define more granular restrictions:

   • Commands: Enter commands to explicitly allow (+) or disallow (-). For example:

     • Allow command: +get
     • Disallow command: -get

   • Channels: Specify Valkey Pub/Sub channels. You can allow (&channel) or disallow (-&channel).

   • Keys: Specify key access patterns. Use the syntax ~key to allow or ~-key to disallow access to specific keys or patterns.

4. After completing the form, click on the Create button to save the new user.

Default Privilege Filtering

CCX ensures the security of your Valkey instance by automatically filtering potentially harmful privileges:

• -@admin: Restricts administrative commands.
• -@dangerous: Restricts commands that could compromise the cluster’s stability.

These privileges cannot be granted through CCX’s standard user interface for security reasons.

Firewall and Access Control

User accounts in CCX Valkey clusters are protected by built-in firewall rules:

• Accounts are only allowed to connect from trusted sources defined in the firewall settings.

Ensure your firewall rules are properly configured to maintain secure access control to your Valkey users.

6 - Supported Databases
